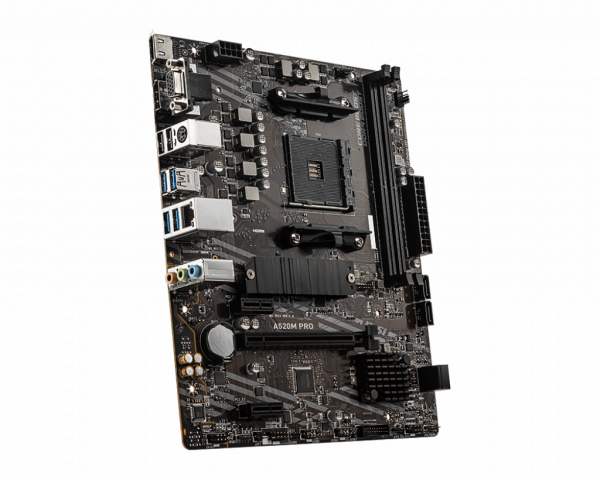

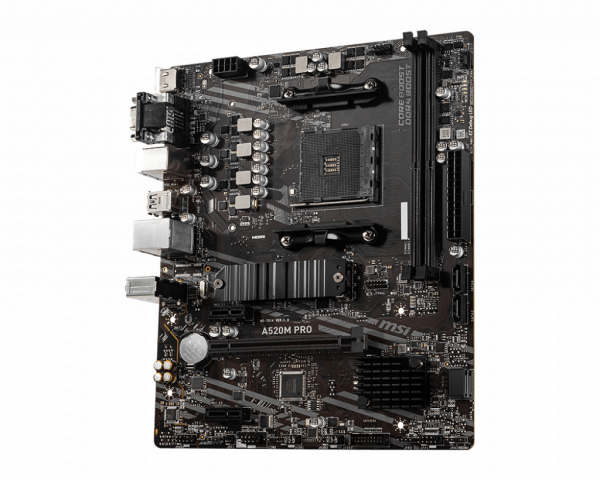

MB AM4 MSI A520M-A PRO
modal image

MB AM4 MSI A520M-A PRO

Šifra: 47033
MSI
MP cena: 8.264,00 rsd.
Web cena: 7.346,00 rsd.
Ušteda: 918,00 rsd.
Sve cene na prodavnici su izražene sa PDV-om.
 Količina

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors

See supported processors

CHIPSET

AMD A520 Chipset

MEMORY

  • 2x DDR4 memory slots, support up to 64GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4600 MHz
      • 1DPC 2R max speed 3866 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

  • 1x PCIe x16 slot (PCI_E2) 1
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.

ONBOARD GRAPHICS

  • 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2
  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz1 2
    Support HDCP 1.4 & 2.3
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4096x2160 @60Hz1
  • Maximum shared memory of 16GB
  1.  Graphics specifications may vary depending on the CPU installed
  2.  Available for the processor with integrated graphics.

STORAGE

AMD A520 Chipset

  • 4x SATA 6Gb/s ports
  • 1x M.2 slot (Key M) (from AMD Processor)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

AMD A520 Chipset

  • 2x USB 3.2 Gen 1 5Gbps ports (2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892/ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Realtek® RTL8111H LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x Serial port connector
  • 1x M.2 slot (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper

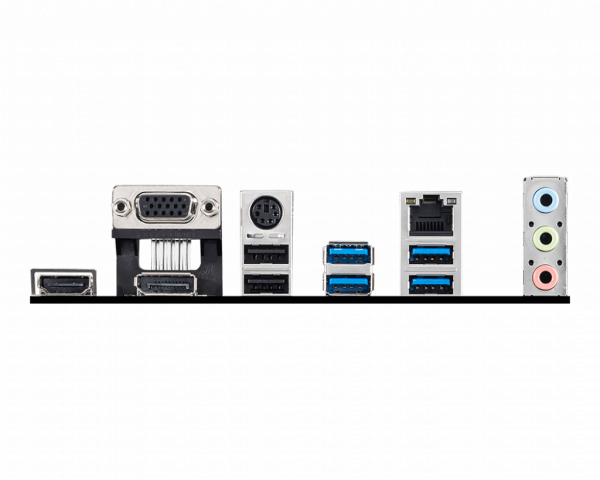

BACK PANEL PORTS

  1. VGA
  2. Keyboard / Mouse
  3. LAN port
  4. HDMI
  5. DisplayPort
  6. USB 2.0 Ports
  7. USB 3.2 Gen 1 5Gbps Type-A
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. Audio Connectors
B550M PRO-VDH WIFI

DIMENSIONS

  • M-ATX Form Factor
  • 9.6 in. x 8.3 in. (24.4 cm x 21 cm)

MOUNTING

6 mounting holes

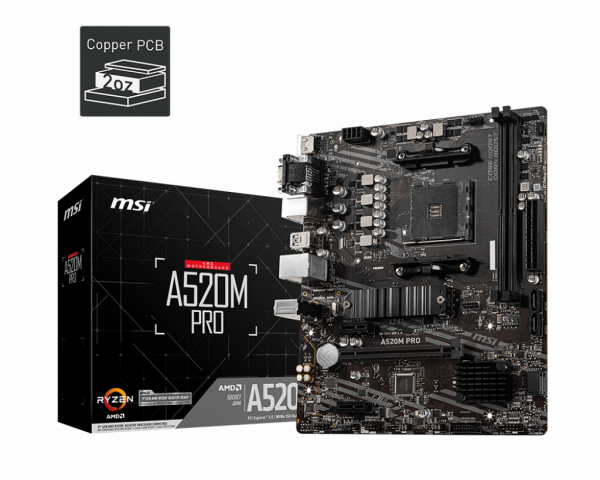

BOX CONTENT

MSI A520m PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
